KIVOSER technical standards

One written standard per product line.

Kitchens and interior doors are two separate lines, made in two different factories, with two different specifications and two different minimum orders. Nothing on the kitchen standard applies to the doors, and nothing on the door standard applies to the kitchens. Choose the line you are specifying.

Interior doors

Interior door standard. Complete door sets made at the specialist door factory near Gdańsk. Minimum 100 pcs, loaded 100 doors to a 20 ft container and 200 to a 40 ft. The kitchen boards, hardware, front families and pallet rules do not apply to this line.

Door set specification

One price, one code and one EAN cover a complete set — there is no separate carcass and front as there is on a kitchen cabinet.

Item

Rebated

Non-rebated

Leaf edge

Rebated:13 mm rebate on the side edge; hinges visible on the opening side

Non-rebated:Flush with the architraves — no cutout on the side edge, concealed hinges

Leaf height

2043 mm

Leaf thickness

40 mm

Leaf widths

744, 844 and 944 mm

Fillings

Tubular chipboard (premium) or honeycomb (most economical)

Hinges

Rebated:Silver screw-in pivot hinges — three on the 944 mm leaf, two on 844 and 744 mm leaves

Non-rebated:Two concealed hinges on every leaf width

Hinge positions

Rebated:First hinge 252 mm from the top of the leaf, 790 mm pitch

Non-rebated:Upper hinge approx. 220 mm from the top edge; lower hinge approx. 1713 mm from the top edge

Lock

Rebated:Lock case 72 × 50 mm, 1000 mm above floor level

Non-rebated:Magnetic lock, 910 mm from the top edge of the leaf

Lock types

Key, Cylinder, Bathroom — chosen per door set; non-rebated sets are supplied in the magnetic version

Frame bands

Rebated:80–105, 100–125, 120–145, 140–165, 240–265, 260–285, 280–305 mm

Non-rebated:75–100, 100–125, 120–145, 140–165, 240–265, 260–285, 280–305 mm

Architrave

T80 (80 mm wide) or T63 (63 mm wide), with a 90° or 45° corner connection

Ventilation gap

Up to 60 mm at floor level

Price

Rebated:Base price — the most economical option

Non-rebated:Premium concealed-hinge variant — priced higher than rebated

Packaging: Packed per door set, flat and stackable
Manufacturing: Poland (specialist door factory near Gdańsk)
Identification: One EAN per door type × model × colour × leaf width × frame band — the same set always reorders under the same code
Logistics: 100 doors fill a 20 ft container, 200 doors fill a 40 ft container. Doors are not counted in kitchen europallets.
Pricing basis: Ex-factory procurement pricing per complete set, minimum 100 pcs

Technical drawings

Choose the door type — the diagrams below follow your choice. The T63 / T80 architrave cross-sections at the bottom are the same for both types.

Visible cutout on the leaf edge, visible hinges.

Rebated — door leaf dimensions

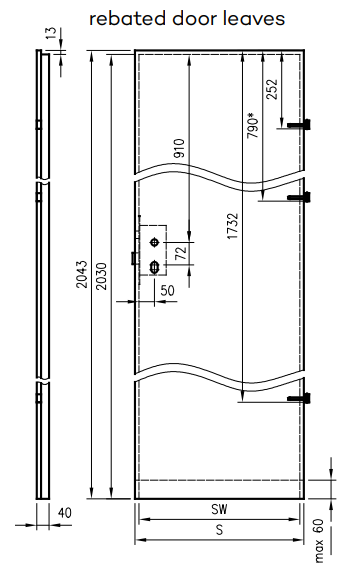

The rebated door leaf — standard 2043 mm height, 40 mm thick with a 13 mm side rebate, hinge and lock positions, and the three-hinge note for the 944 mm leaf.

Rebated door leaf — 2043 mm height, 40 mm thick, 13 mm rebate, hinge and lock positions

Rebated — door frame dimensions

Reference dimensions for rebated single-leaf doors — the cross-section shows how the adjustable frame sits in the wall opening; the table gives the matching values.

OR/ORC horizontal cross-section of a single-leaf door frame — OR/ORC horizontal cross-section — A, C, D, E** and E* dimension letters

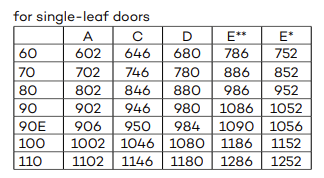

Dimension table for single-leaf doors — A, C, D, E** and E* values per nominal size — For single-leaf doors — A, C, D, E** and E* values per nominal size

Architraves — both door types

The T63 and T80 architrave cross-sections are identical for rebated and non-rebated door sets.

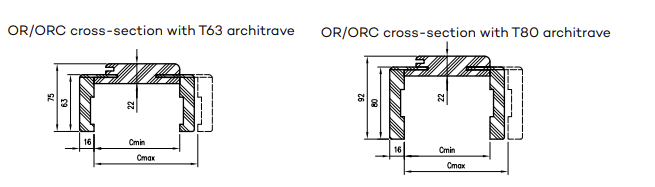

OR/ORC horizontal cross-sections with T63 and T80 architrave, with casing and wall-band dimensions — OR/ORC cross-sections with T63 and T80 architrave — casing depth 75 mm (T63) and 92 mm (T80), 22 mm frame face, Cmin / Cmax adjustable wall band

T80 architrave cross-section — 80 mm architrave casing on the wall opening — T80 architrave cross-section — 80 mm wide casing

T63 architrave cross-section — 63 mm architrave casing on the wall opening — T63 architrave cross-section — 63 mm wide casing

Models and surfaces

Three model families, available on both the rebated and the non-rebated leaf. The colour choice does not change the construction — only the surface and the code.

Standard 10 — CPL

CPL laminate

Hard-wearing CPL surface, rebated or non-rebated. The workhorse specification for hotels, apartments and rental stock.

Standard 10 — Foil

Foil

The widest colour range of the three, on the same leaf. Best value per door on large residential projects.

UNI 10 — Painted

Painted finish

Smooth painted leaf for higher-spec interiors, in four neutral tones.

Configure a door set and see the price →
